Acrylic Helicopter

The brief for this assignment was “make something with that incorporates a basic motion”

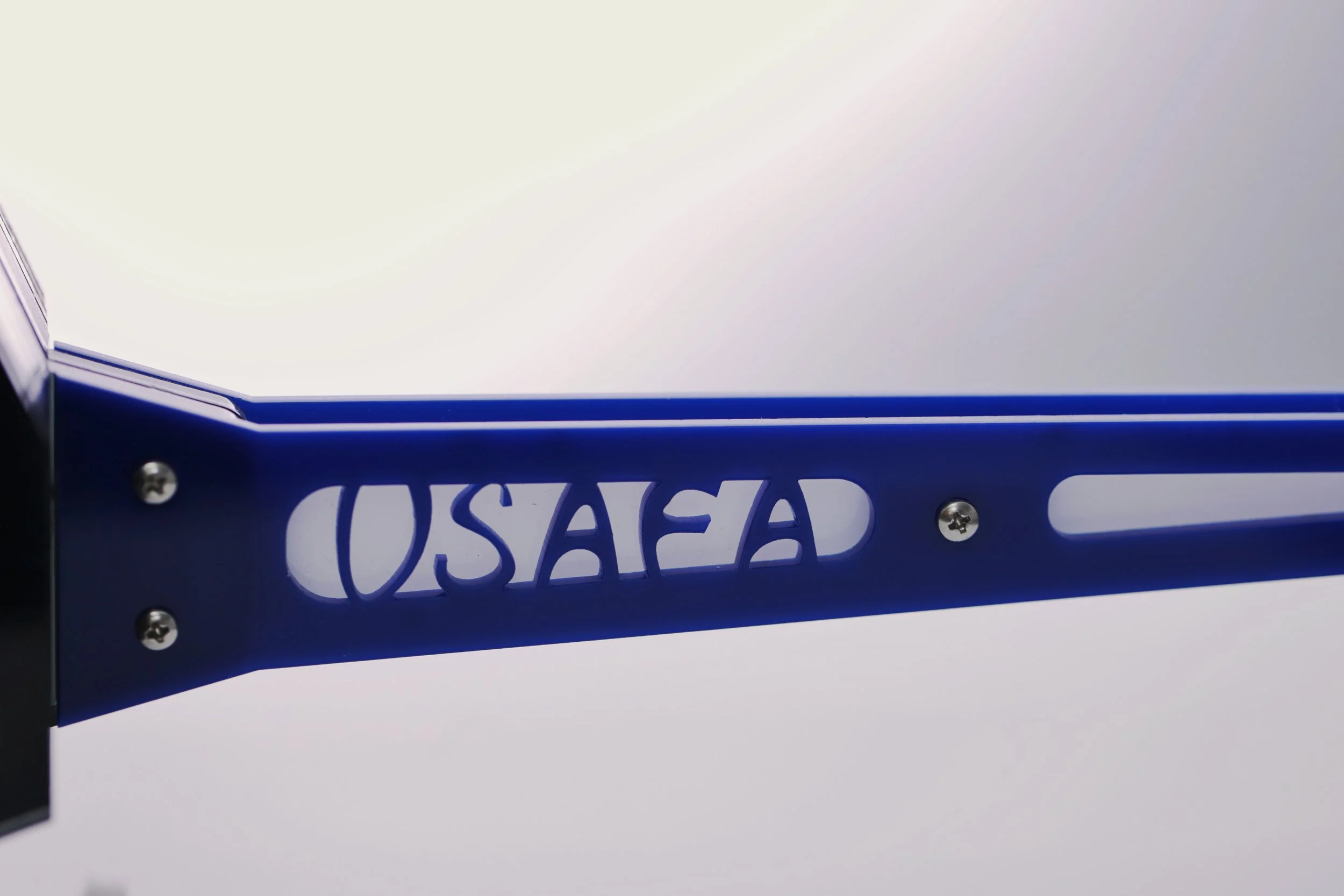

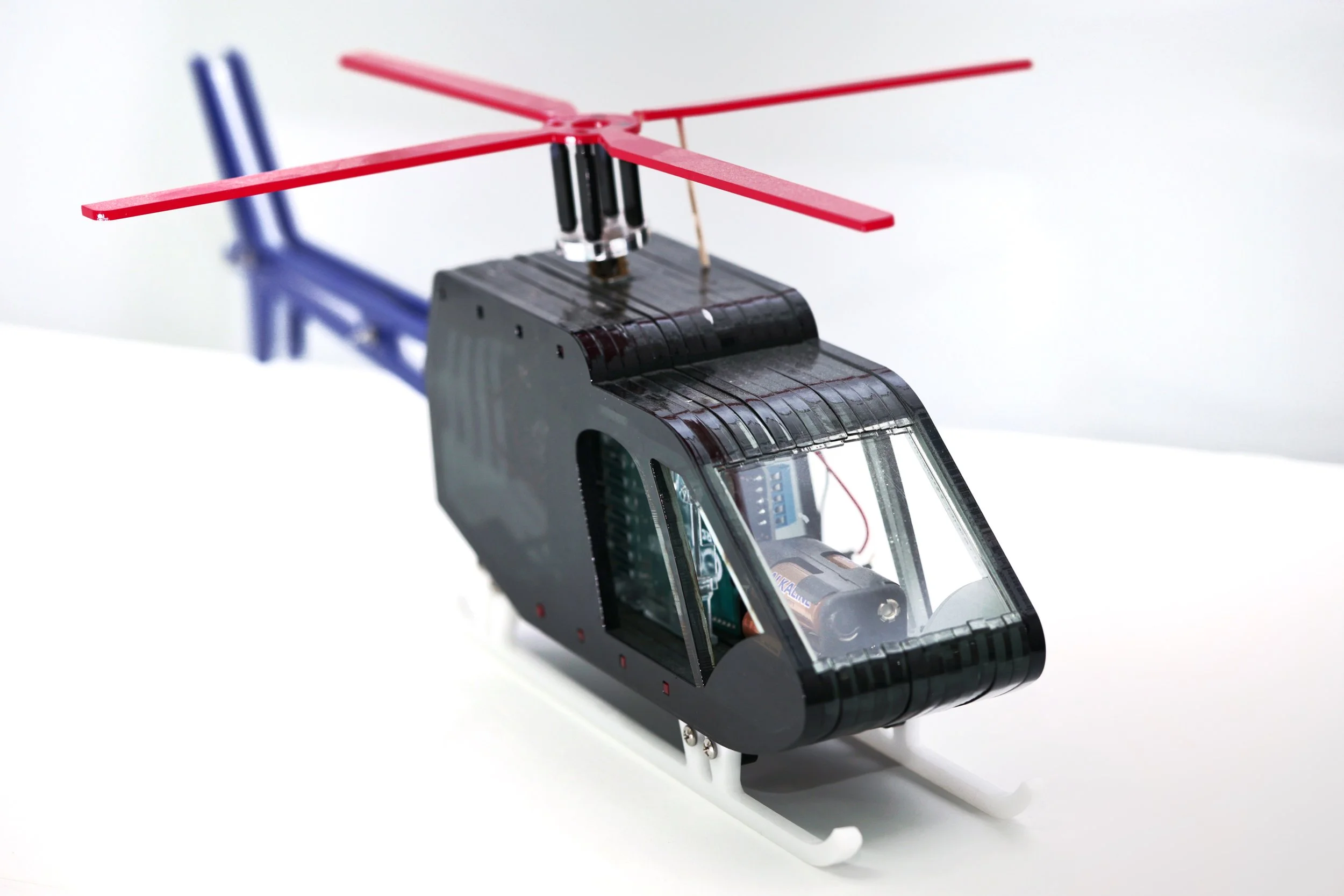

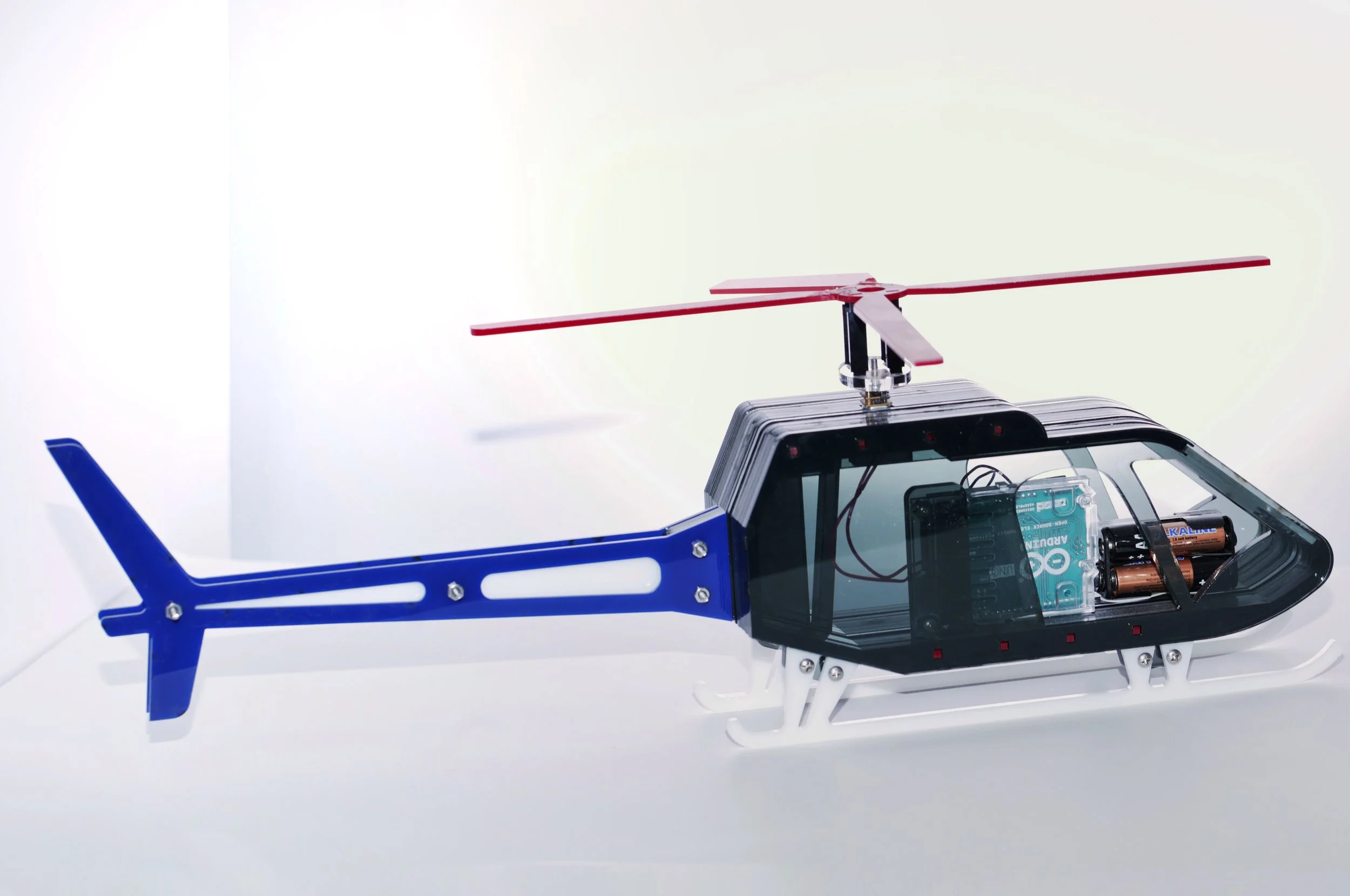

  • Fully acrylic helicopter created from panels cut out of 1/4” and 1/8” sheets

  • Modeled off of a military grade vehicle and designed, built, and assembled fully in SolidWorks before prototyping out of acrylic

  • Assembled using various press fit joints, lap joints, and acrylic pegs

  • Arduino incorporated to create the motion of the rotor

  • Won Best Team project

Finished Rendered CAD

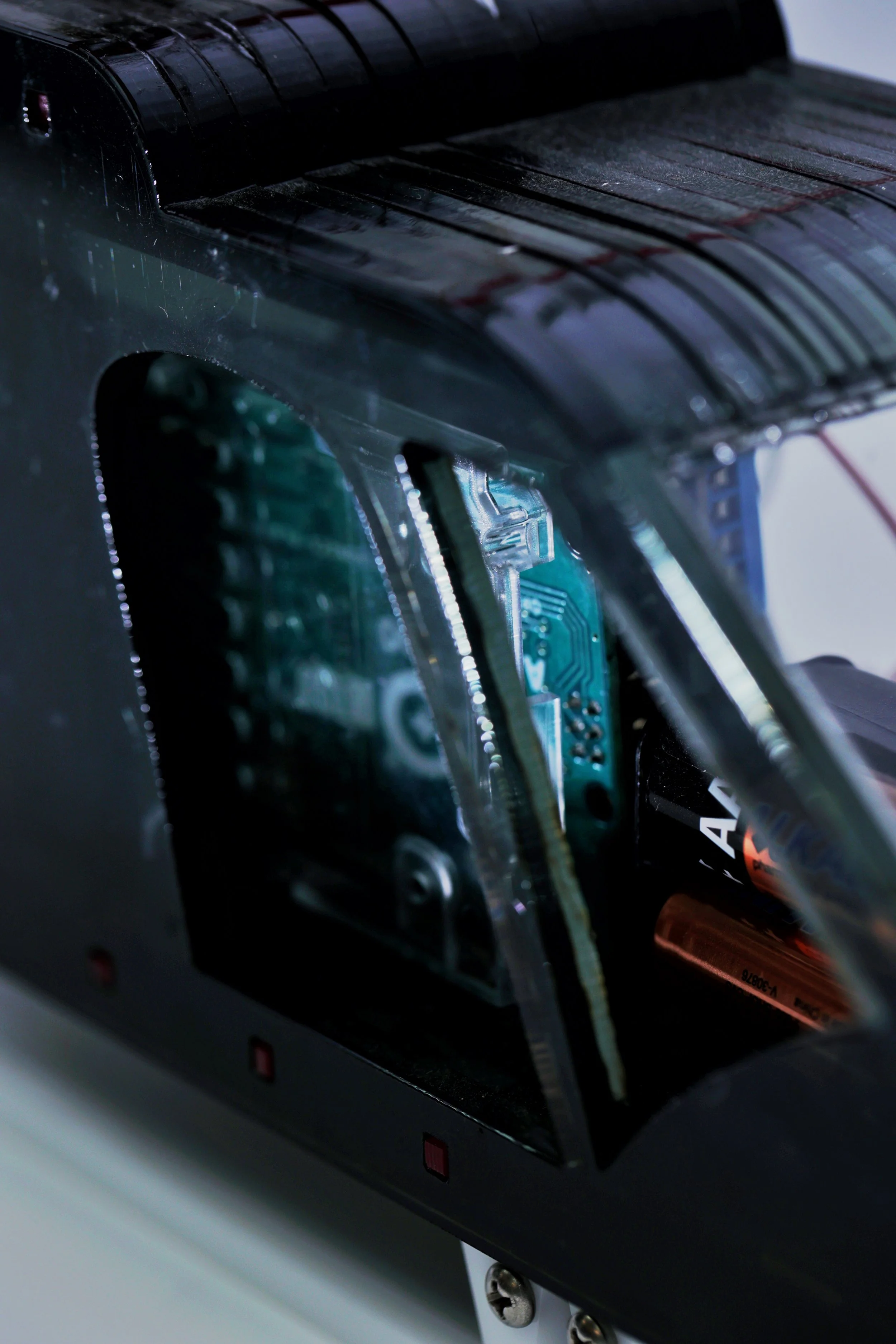

These images better show the interior structures that support the housing for the Arduino.
